DPA Drip Pot Assemblies
Get Started
Request A QuoteStill Have Questions?

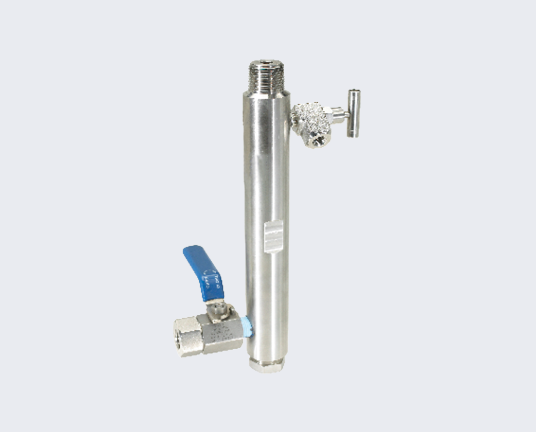

Contact UsSentry 's DPA drip pot assemblies offer easy-to-use equipment for collecting samples within a pipeline or other pressurized system, without interruption to the system.
By collecting samples with an interior reservoir, this stainless steel drip pot allows operators to collect samples for analysis without impacting the environment or safety.
- The DPA assembly utilizes a bleeder valve to relieve pressure and protect the operator from any leakage or damage.
- An optional corrosion coupon holder allows for additional analysis and protection.
- The components are tested at safety pressure 1.5x the operating pressure to comply with ASME and NACE standards.
Volume
- Sentry's drip pot assembly can manage volumes of 60 ml up to 500 ml, depending on the model.
Pressure
- The DPA can handle a max pressure of 3600 PSI (248 bar).
Process Connections
- Each drip pot can handle connections from 1/2 in to 2 in MNPT with additional coupon styles or bacteria traps depending on needs.
Weight
- 7-20 lbs
Length
- 7-12.75 inches (178-324 mm)
Related Resources
Learn more about how the Drip Pot Assembly can benefit your application with the following resources.
Spec Sheets

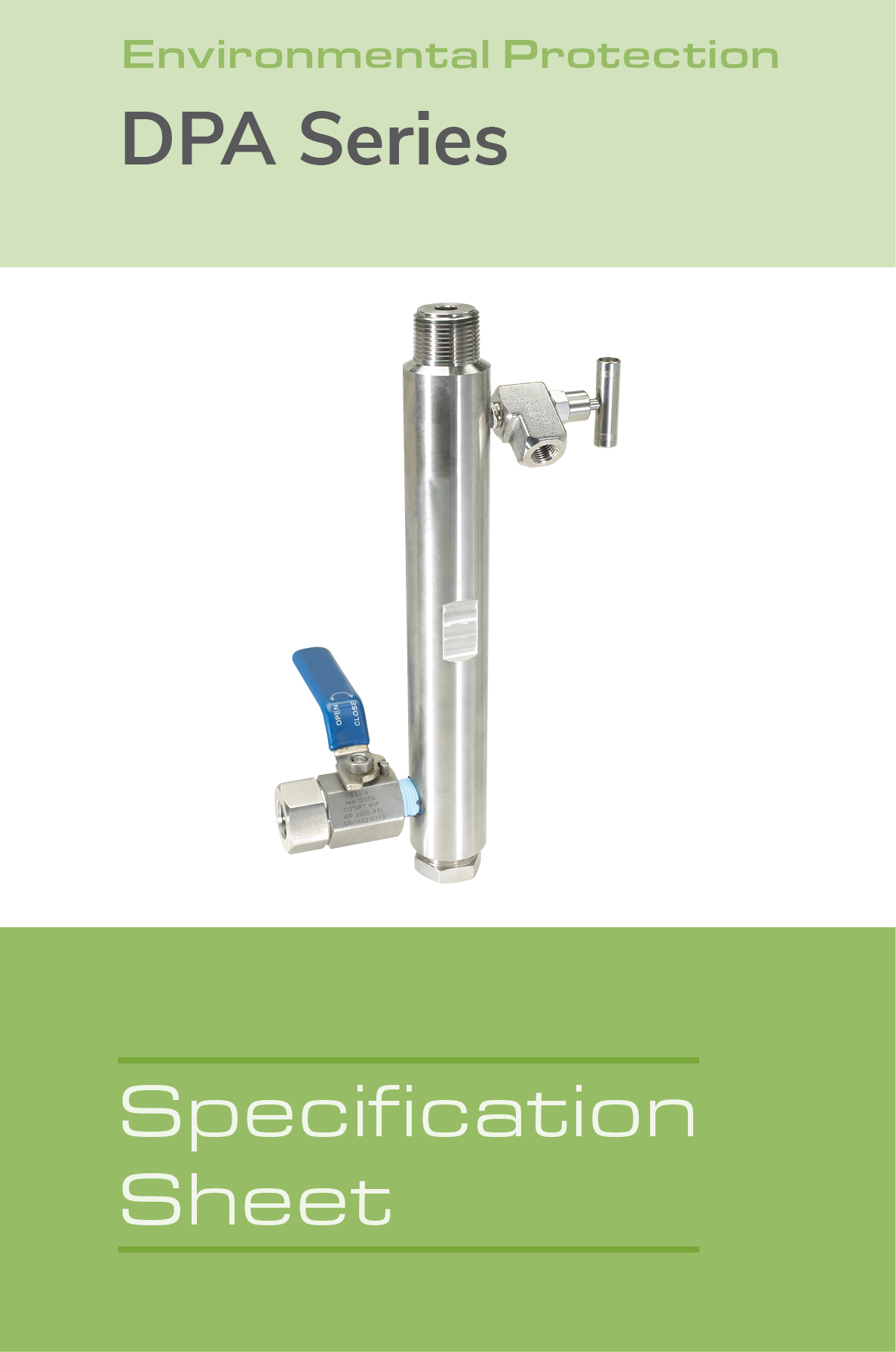

DPA Assembly Spec Sheet
