Detector Tube Sampler
Get Started
Request A QuoteStill Have Questions?

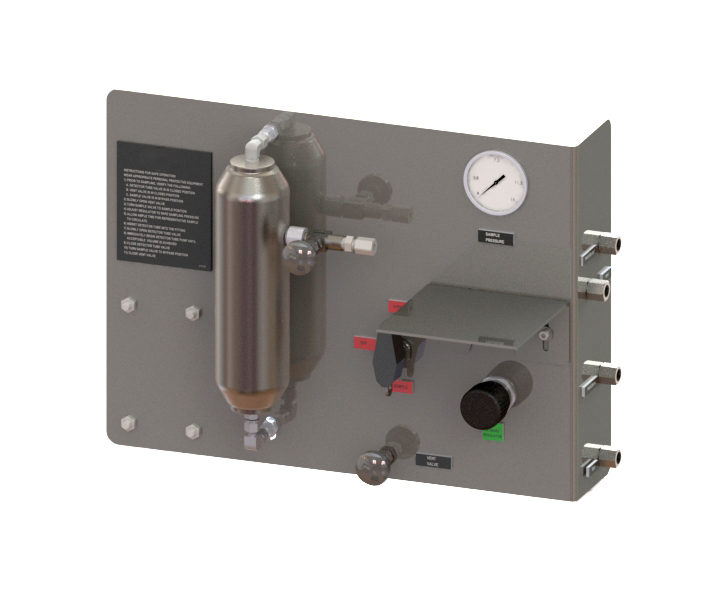

Contact UsDesigned to perform a detector tube measurement, the Detector Tube Sampler regulates high-pressure environments to a safe level before inserting the detector tube. This gas sampler’s 1000 cc cylinder and Teflon detector tube fitting ensures that you have access to a fresh sample for full representation each time.
Primarily for sampling H2S, each detector tube sampler comes with high pressure regulators and a pressure gauge to maximize pressure control, confirming you are within a safe range before sampling. By following the instructions written on each gas sampler, you will be assured that a seamless representative sample will be taken every time.
- Each detector tube sampler comes with a large volume chamber, allowing for ample volume draw.
- Labeled step by step instructions and valves ensure that minimal training is needed to operate the equipment, reducing the potential for equipment downtime or sampling inaccuracies.
- Installation is made easier with labeled side process connections.
Materials
- Sentry's detector tube sampler is made of 316 stainless steel and FKM or FFKM O-Rings.
- Contact us if you require other body materials.
Pressure
- The DT sampler is pressure rated for up to 1800 PSI at 100˚ F (124 bar at 38˚ C).
Temperature
- This sampler is temperature-rated for up to 140˚ F (60˚ C).
- If temperatures of greater than 140˚ F (60˚ C) are needed, a sample cooler needs to be included.
Additional Capabilities
- Each sampler is highly customizable. You can customize the system with the following additional add-ons:
- Pipe stand
- Enclosures
- Process isolation valves (inlet and/or return)
- You can also build a more robust system for H2S analysis by combining the detector tube with the Model C sampler.
Related Resources
Learn more about how the Detector Tube Sampler can benefit your application with the following resources.
Spec Sheets

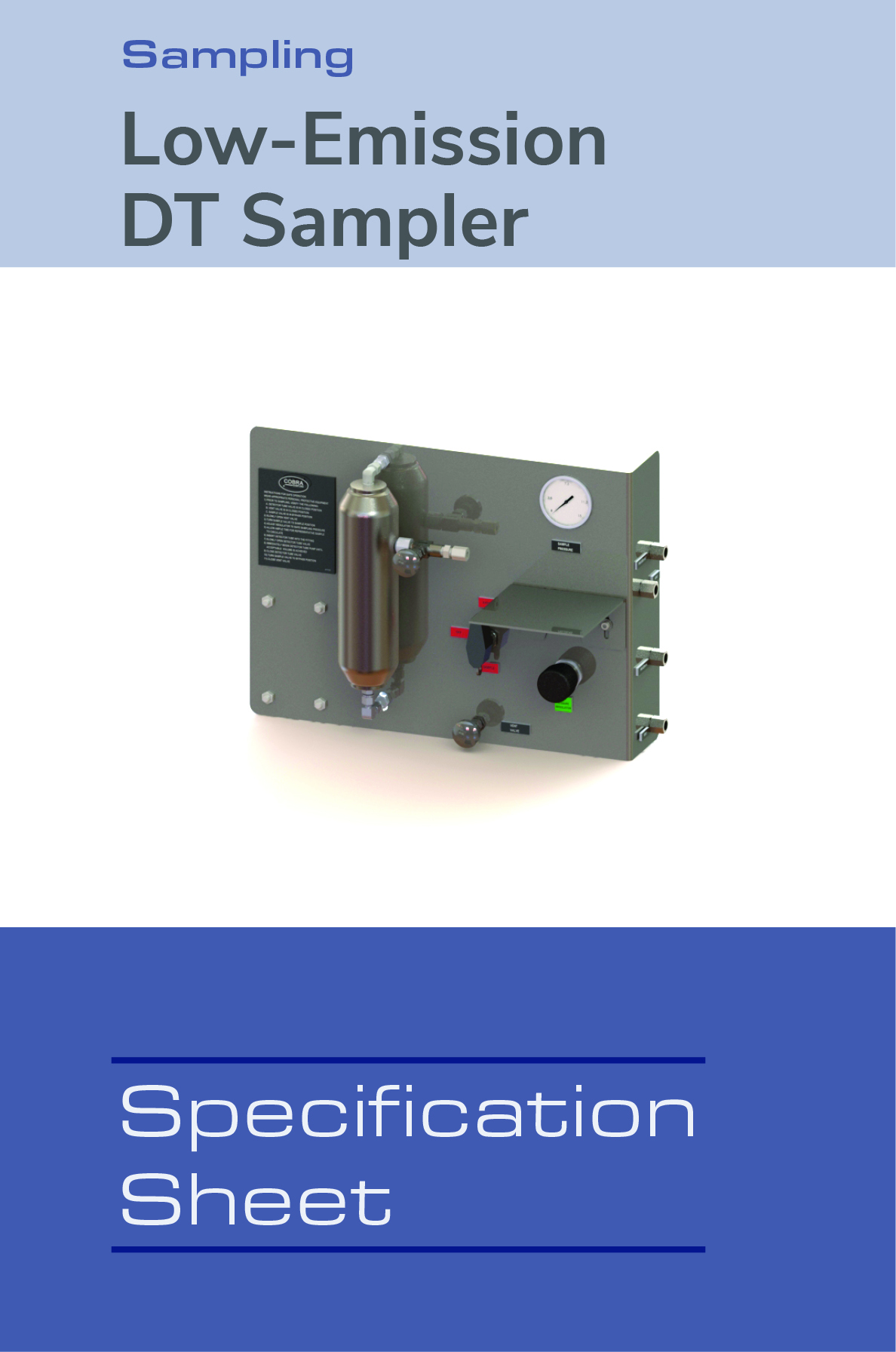

Detector Tube Sampler Spec Sheet
