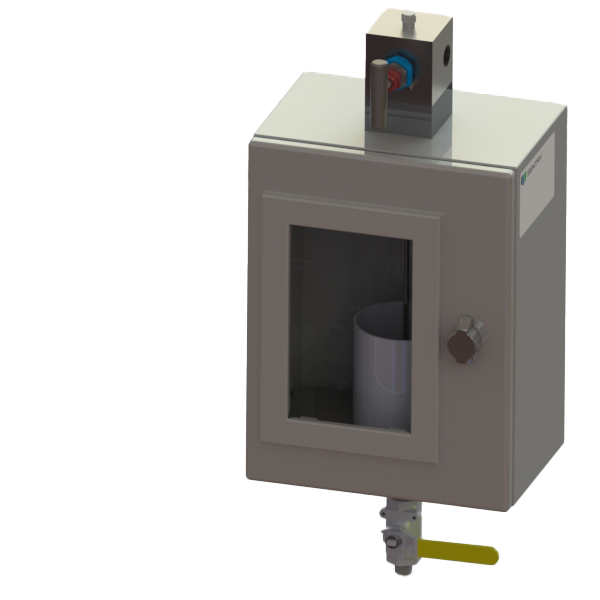

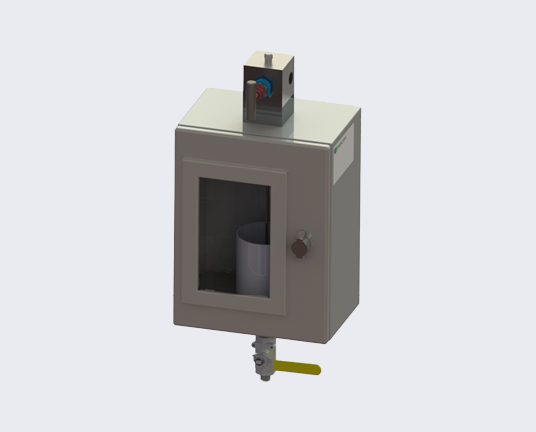

Designed for sampling high temperature/high viscosity applications such as hot oil, the Model HTHV Sampler encloses the system to protect the operator from harm while allowing visibility into the process with a viewing window.

This sampler’s use of a multi-turn valve allows for flow control while the hardened seat ensures abrasive particles don’t harm your equipment. By safely sampling with the HTHV sampler, operators can ensure that their samples will remain at optimal temperature without plugging, clogging, or getting cold spots.

Each Model HTHV Sampler comes with a ¼ in orifice to ensure that you can handle high viscosity flows.
The High Temperature High Viscosity Sampler has a flow-through valve that allows for constant process flow for the most representative sample possible.
Additional options include a steam-jacketed stinger and double-block valve, ensuring your operators and environment maintain peak safety.

Download Specs

Email Specs

Pressure

The HTHV low-e sampler is pressure rated for up to 3000 PSI at 100˚ F (207 bar at 38˚ C).

Temperature

Sentry's high temperature sampler is temperature rated for up to 750˚ F (399˚ C).

Additional Capabilities

Each sampler is highly customizable. You can customize the system with the following additional add-ons:
- Pipe stand
- Process isolation valves (inlet and/or return)
- Steam-jacketed stinger
- Secondary isolation
- N2 or steam purge
- Eductor on enclosure
- Double block valve
