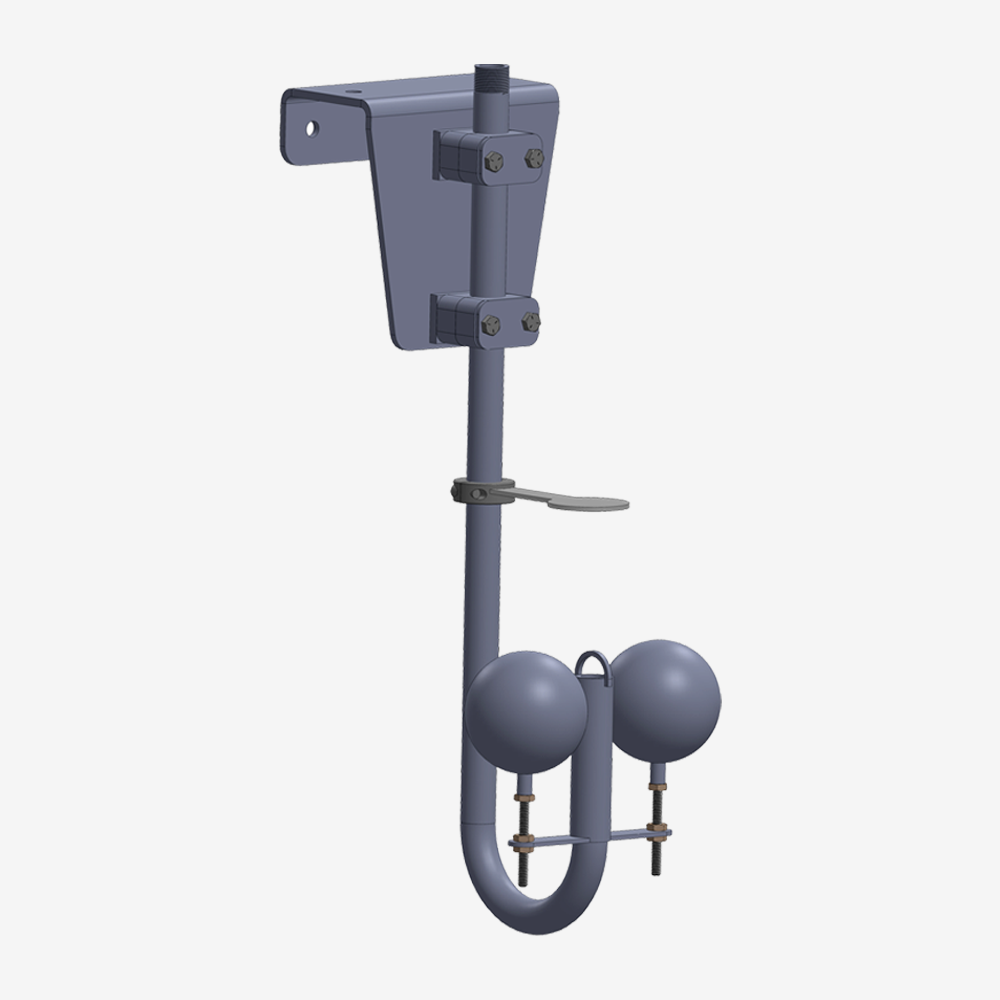

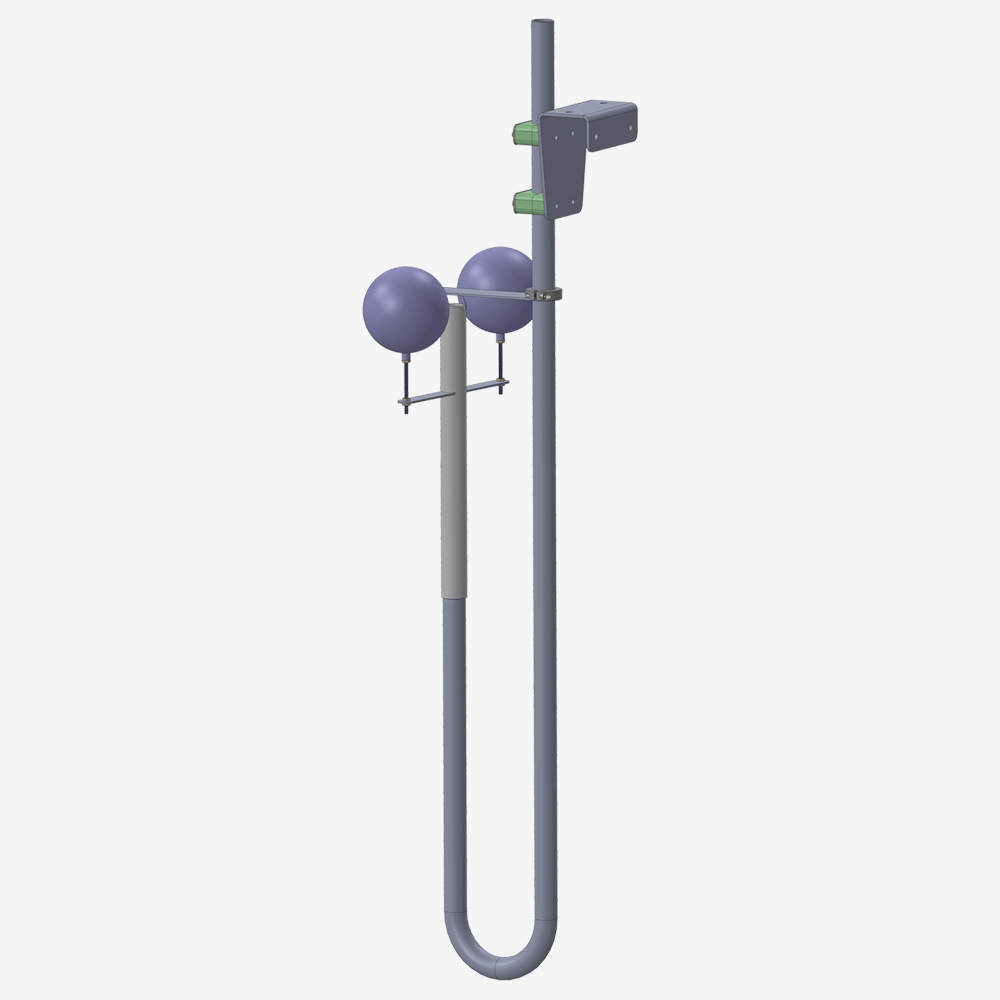

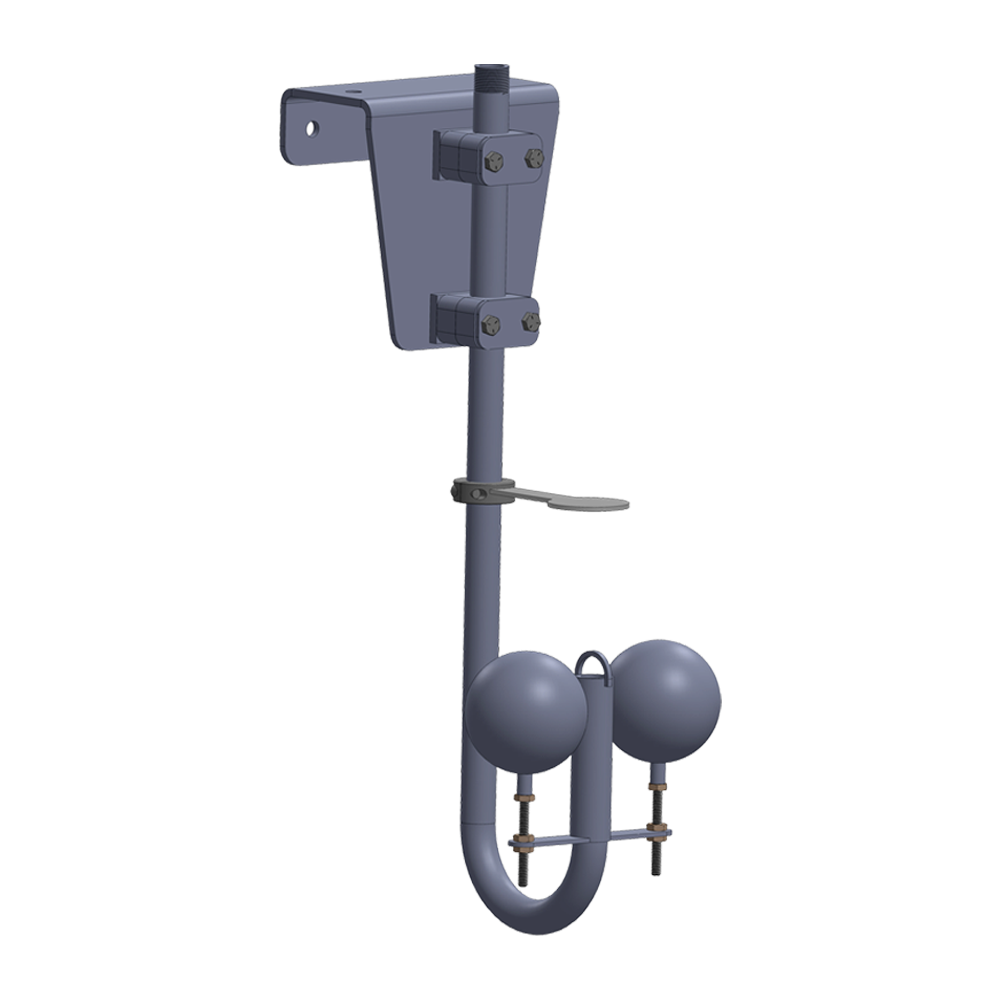

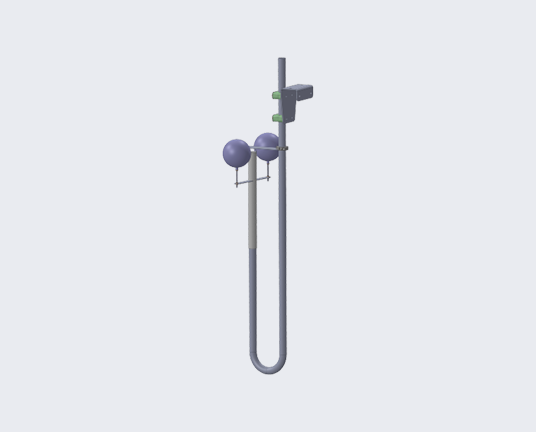

J-Tube Skimmer

Name: J-Tube Skimmer
Brand: Sentry Equipment

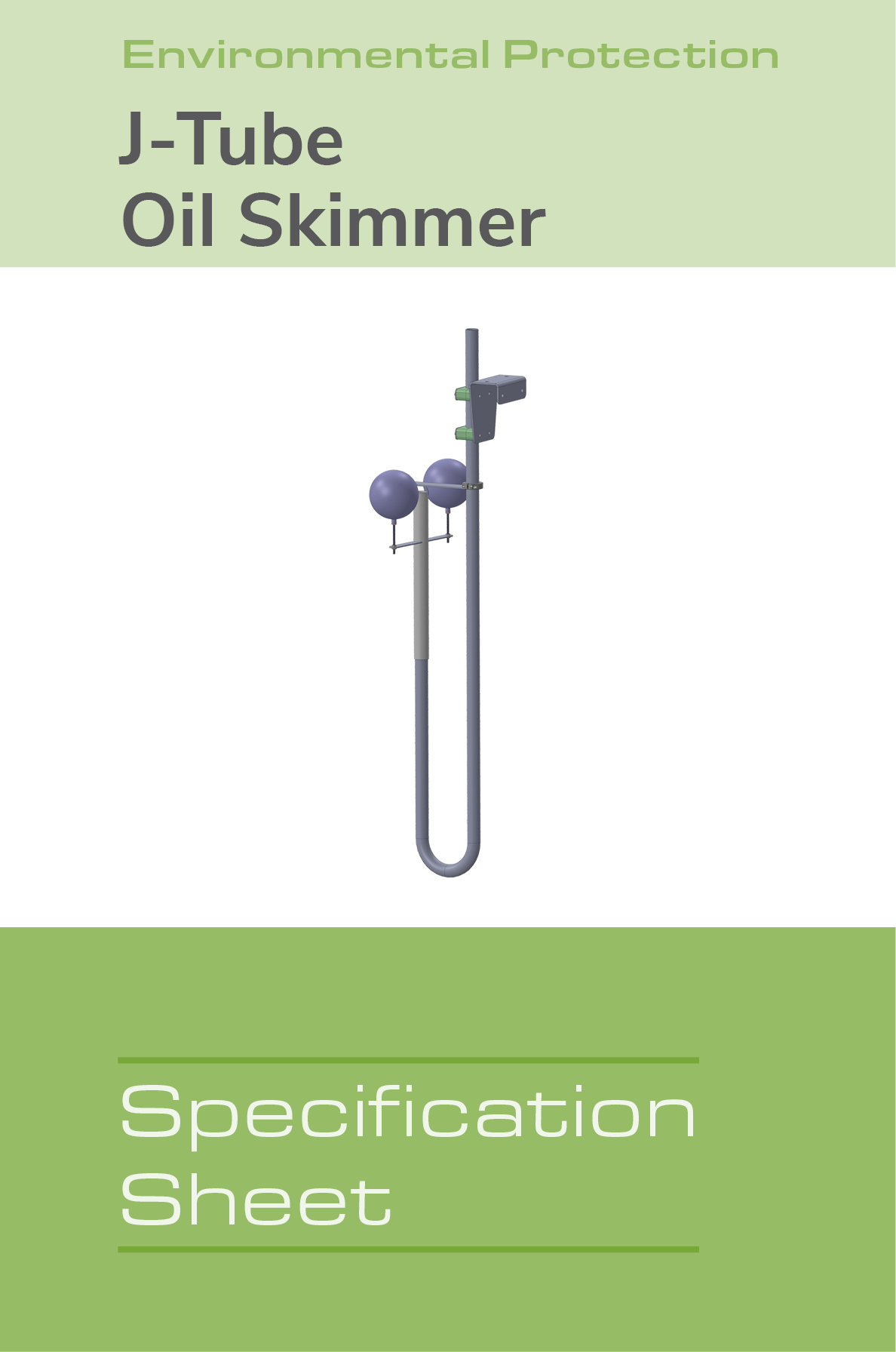

Download Specs

Email Specs

Get Started

Request A Quote

Still Have Questions?

Remove free-floating and mechanically dispersed tramp oils from fluid surfaces with Smartskim’s J-Tube Floating Oil Skimmer. The skimmers work in any application where skimming oil off of the top surface of a fluid is required.

Applications include but are not limited to wash tanks, individual machine sumps, central coolant systems, machine pits, and wastewater treatment tanks. The floating skimmer utilizes a universal bracket to change positions as fluid levels adjust, assuring consistent and continuous skimming.

Simply connect the J-Tube Suction Skimmer to the suction side of a transfer pump and you’re ready for skimming.

The J-Tube Floating Oil Skimmer has no belts, drums, or hoses – minimizing the chance of clogging.
Its durable stainless steel construction eliminates hardening or collapsing.
The skimmer can be used with virtually any coolant or cleaner and requires minimal maintenance.

Download Specs

Email Specs

Connections

3.5 in J-Tube Skimmer has a ½ in NPT connection (1.27 cm).
7 & 17 in have a connection size of 1 in NPT (2.54 cm)

Suction Levels

3.5 in Model: 6.5 in min, 10 in max suction level

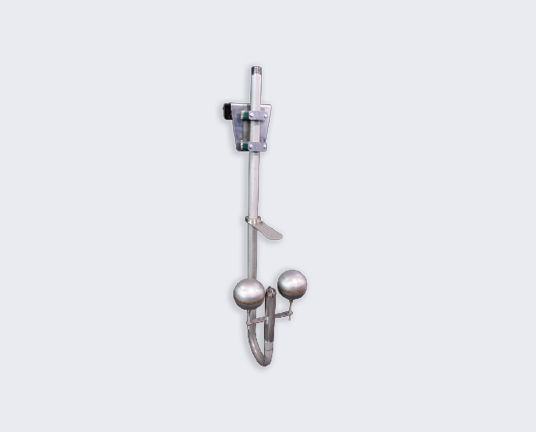

7 in Model: 14.75 in min, 21 in max suction level

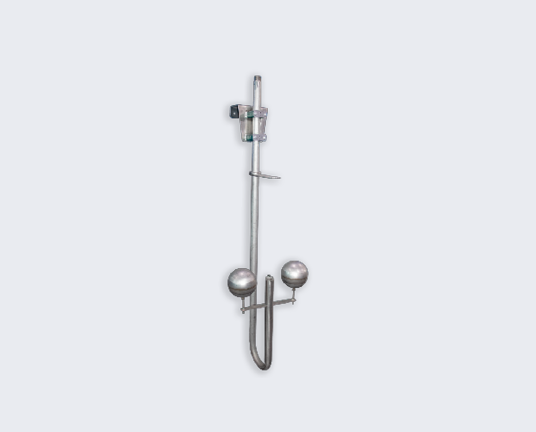

17 in Model: 22 in min, 39 in max suction level

Download Specs

Email Specs

3.5 in Model: 9.875 in x 7.25 in x 21 in (25.08 cm x 18.42 cm x 53.34 cm)
7 in Model: 12.625 in x 10.25 x 43.75 in (32.07 cm x 26.04 cm x 111.13 cm)
17 in Model: 13.125 in x 14.875 in x 56 in (33.34 cm x 37.78 cm x 142.24 cm)
