SAL-Q Automatic Isolatable Sampler

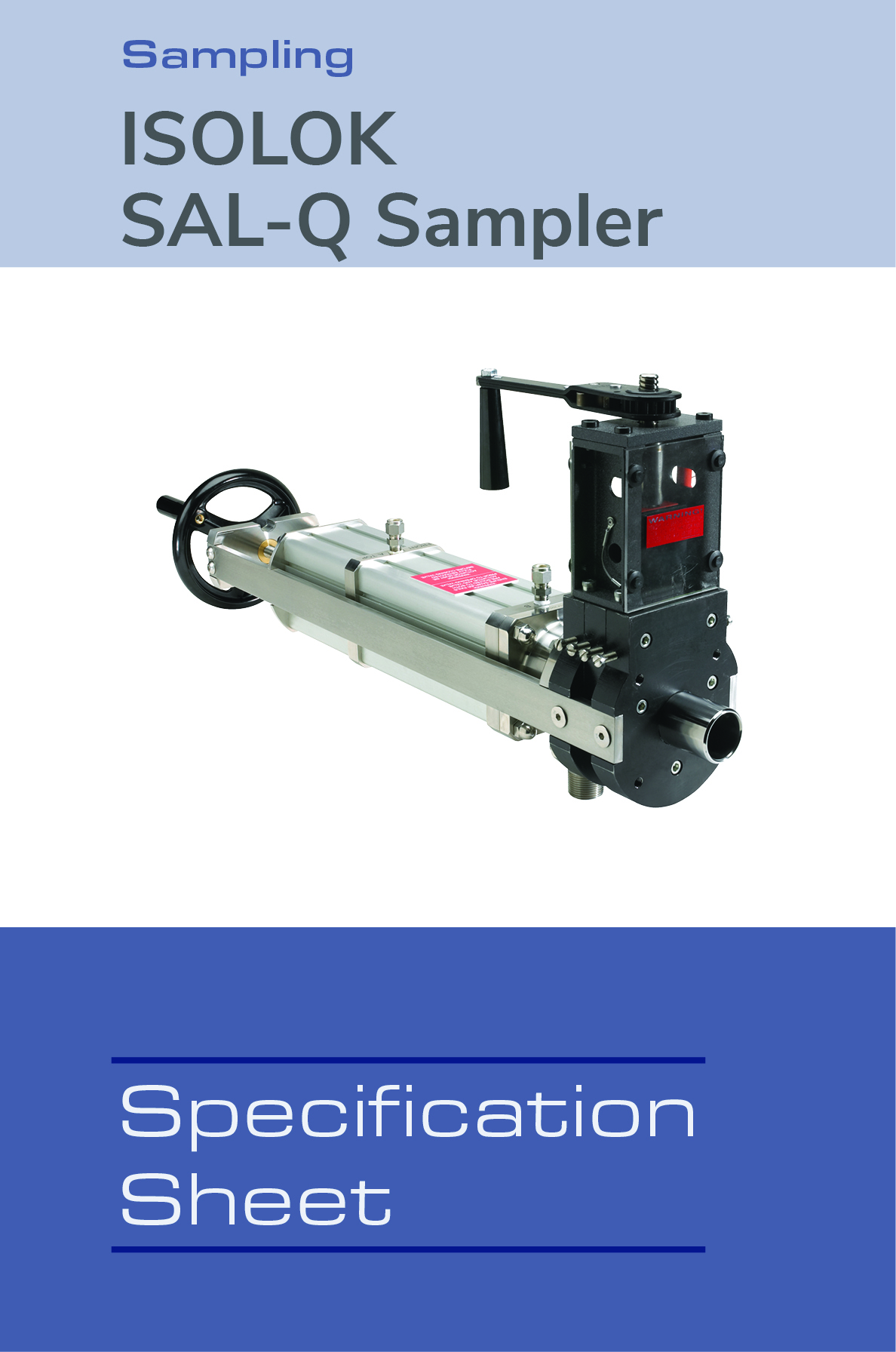

Download Specs

Email Specs

Get Started

Request A Quote

Not What You're Looking For?

Designed for mining applications, the ISOLOK SAL-Q sampler collects samples to ensure you are obtaining quality products and making intelligent decisions.

This mining sampler employes a Delta double block and bleed valve to isolate the sampler and the operator from the process line.

Using compressed air and a controller, operators can match their sampling needs to their specific purpose.

Maintenance is simple due to the sampler's plunger extension providing access to seals and wrench flats.
A variety of customizations are available from port closures, line adapters, different containers, and more.
All SAL-Q products come with a Class IV shutoff, enabling the sampler to be removed while the process remains in service.

Download Specs

Email Specs

Temperature

ISOLOK SAL-Q can operate at up to 500 PSI at 450˚F (34.4 bar at 232˚C).
The recommended operating temperature is 720 PSI at 100˚F (49.6 bar at 38˚C).

Pressure

The SAL-DBB recommended operating pressure is 300 PSI (20.7 bar) at 80 PSI (4.0 bar) air compression.
However, it can handle up to 400 PSI (27.5 bar) at 80-100 PSI (5.5-6.9 bar) air compression.

Particle Size

The maximum particle size for this ISOLOK is .2 in (5 mm).

FAQ Sampling Questions

We warrant our products to be free from defects in workmanship and materials with conditions and limitations. View our standard warranty in detail to learn more about your coverage.

Sentry's bulk solid and ISOLOK sampler maintenance schedules depend on the application. However, it is recommended to clean your equipment every 6 months and review cycle counts to determine the average change time of seals. You should also document every failure for a more robust maintenance schedule.

Serial numbers can be found stamped on the product itself, on an adhesive nameplate or on a stainless steel tag.
