Model MVD Liquid Sampler

Download Specs

Email Specs

Get Started

Request A Quote

Still Have Questions?

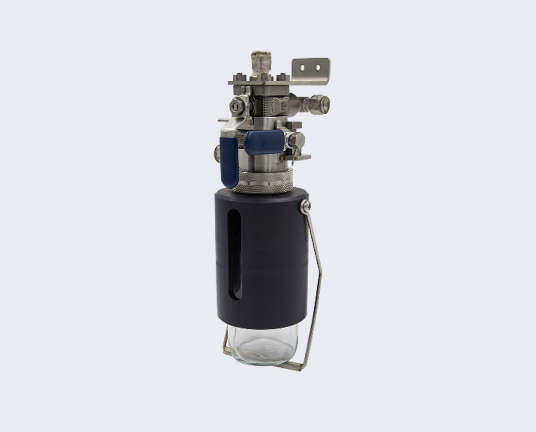

Designed to sample in closed loop processes such as refining, petrochemical, and nuclear applications, the Model MVD Liquid Sampler uses a double block valve to not only protect the process but also the operators.

This Low Emission liquid sampler adds a secondary level of safety with its adjustable throttle stop and spring-loaded throttling valve, ensuring that you can close the line quickly without accidental spillage or contamination.

The MVD sampler comes available with a variety of needle arrangements and sample bottle sizes to ensure that it meets your application needs.
Additional options include a carbon canister and enclosures, ensuring your operators and environment maintain peak safety.
Compatible with nuclear applications using a glove box

Download Specs

Email Specs

Materials

Each MVD sampler has wetted materials made of 316 stainless steel, PTFE, FKM, or FFKM.

Bottles Sizes

This sampler comes with two 32 ounce Boston Round bottles.
Contact our team for other bottle sizes or materials.

Pressure

This low-e liquid sampler can manage pressures of up to 1000 PSI at 250˚ F (70 bar at 122˚ C).

Temperature

The Model MVD is temperature rated for up to 450˚ F at 100 PSI (232˚ C at 7 bar).

Additional Capabilities

Each sampler is highly customizable. You can customize the system with the following additional add-ons:
- Nitrogen purge
- Panel-mounted system
- Special materials
- 1/4 or 1/2 in size valves
- Isolation valves
- Sample coolers
- Emission filter on vent
