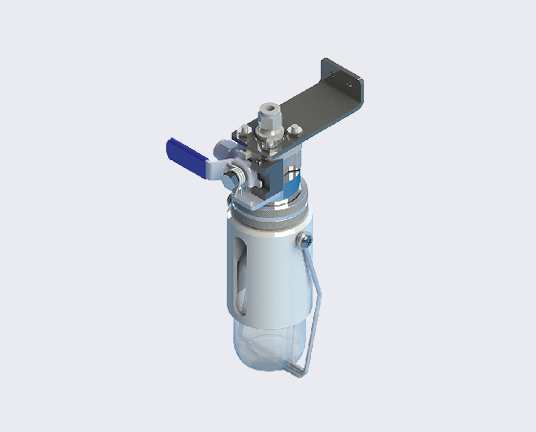

Contact UsDesigned to sample for sampling liquids in refining, chemical, and nuclear applications, the Model MVS Low-E Sampler protects the operator and atmosphere through a close-coupled ball valve and a side-discharge dual needle assembly.
Additional safety can be found through the low-e liquid sampler’s adjustable throttle stop and spring-loaded throttling valve, ensuring operators can close the line quickly without accidental spillage or contamination.
- The MVS sampler comes available with a variety of configurations to ensure that it meets your application needs.
- Can meet the demands of higher viscosity sampling with an optional tube stub.
- Additional options include a carbon canister and enclosures, ensuring your operators and environment maintain peak safety.
- Compatible with nuclear applications using a glove box
Materials
- Each MVS sampler has wetted materials made of 316 stainless steel, PTFE, FKM, and FFKM
Bottle Sizes
- This manual sampler comes with two 32 ounce Boston Round bottles.
- Contact our team for other bottle sizes or materials.
Pressure
- This low-e liquid sampler can manage pressures of up to 2200 PSI at 100˚ F (150 bar at 38˚ C).
Temperature
- The Model MVS is temperature rated for up to 450˚ F at 100 PSI (232˚ C at 7 bar).
Additional Capabilities
- Each sampler is highly customizable to meet various applications.
- The MVS also can be panel-mounted.
