Model FV Fixed Volume Sampler

Download Specs

Email Specs

Get Started

Request A Quote

Still Have Questions?

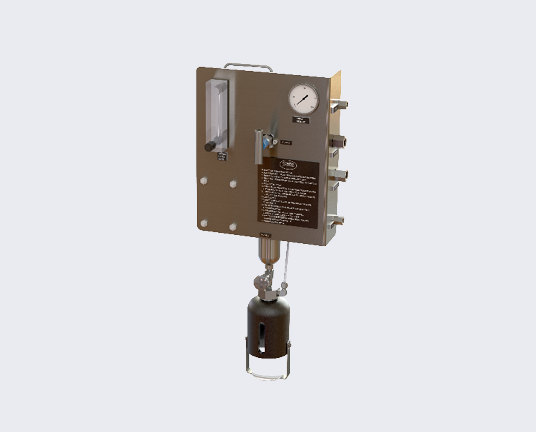

Designed with dedicated inlets and outlets, the Model FV High Pressure Sampler connects to your processes utilizing a sample valve to extract a sample.

By following the instructions written on each Model FV sampler, you will be assured that a seamless representative sample will be taken every time.

Each Model FV Sampler comes with a coaxial needle system to reduce the concern of bent or broken sample needles.
Labeled step by step instructions and valves ensure that minimal training is needed to operate the equipment, reducing the potential for equipment downtime or sampling inaccuracies.
By using a fixed volume cylinder, the sample volume is consistent between every sample taken and remove accidental overfill.

Download Specs

Email Specs

Materials

Each Model FV is made with a 316 stainless steel body and FFKM seals. However, other materials are available upon request.

Bottle Sizes

This sampler comes with two 32 ounce Boston Round bottles.
Contact our team for other bottle sizes or materials.

Pressure

This Model FV low-e sampler is pressure rated for up to 1800 PSI at 100˚ F (124 bar at 38˚ C).

Temperature

Sentry's low-e FV is temperature rated for up to 350˚ F at 1180 PSI (177˚ C at 81 bar).
If temperatures of greater than 140˚ F (60˚ C) are needed, a sample cooler needs to be included.

Additional Capabilities

Each sampler is highly customizable. You can customize the system with the following additional add-ons:
- Pipe stand
- Enclosures
- Process isolation valves (inlet and/or return)
- Emissions filter on vent
