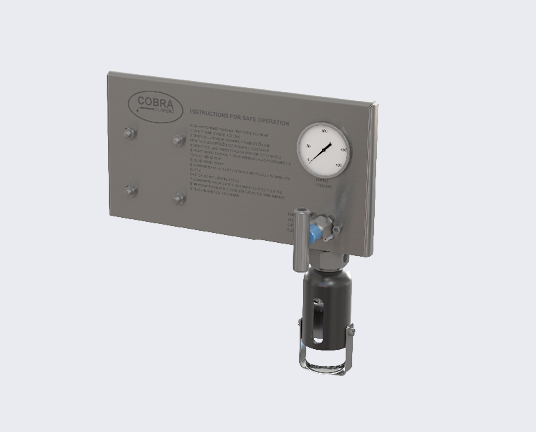

The Model SS liquid sampler boasts a variety of unique features that makes it easier to operate. Made of stainless steel or other exotic materials, the sampler meets the highest standards of quality and reliability.

All of our SS units use the Cobra-designed sampling valve that allows throttling and control of sample flow.

By following the instructions written on each Model SS sampler, you will be assured that a seamless representative sample will be taken every time.

Each Model SS Liquid Sampler comes with a coaxial needle system to reduce the concern of bent or broken sample needles.
Labeled step by step instructions and valves ensure that minimal training is needed to operate the equipment, reducing the potential for equipment downtime or sampling inaccuracies.
This Model SS sampler ensures that operators and the environment are protected from toxic or corrosive product.

Download Specs

Email Specs

Materials

Each Model SS is made with a 316 stainless steel body and FFKM seals. However other materials are available upon request.

Bottle Sizes

This sampler comes with two 32 ounce Boston Round bottles.
Contact our team for other bottle sizes or materials.

Pressure

This Model SS low-e sampler is pressure rated for up to 250 PSI (17.2 bar).

Temperature

Sentry's low-e SS is temperature rated for up to 500˚ F (260˚ C).
If temperatures of greater than 140˚ F (60˚ C) are needed, a sample cooler needs to be included.

Additional Capabilities

Each sampler is highly customizable. You can customize the system with the following additional add-ons:
- Pipe stand
- Enclosures
- Secondary isolation valve
- Needle purge
- Emissions filter on vent
